The self centering 2V dies, the size is 46*50* 835mm, 88degree, the weight is 13kg. and we can make V5-V9, V8-V12, V12-V20, V16-V25 and other V opening according the bending thickness.
Package: Multi plywood
Tooling system :
JM - System AmadaArt.No. :
JM - 20348Brand :
JaminnarOrder(MOQ) :
1Payment :
T/T, Western Union, Alipay, WeChat etc.Product Origin :
MaanshanShipping Port :
Shanghai / Guangzhou or OtherLead Time :
15 - 20 days after receiving the depositAngle :
85°Die opening :
16 mm, 25 mmRadius :
2 mm, 3 mmTotal Height :
46mmMax load :
800 kN/mMaterial :
42CrMo4Hardness :
HRC47±3 or HRC57±3Clamping System :
AmadaHeat Treatment :
Full body heat treatment / Laser hardeningLength and Weight :
835mm/73kg、415mm/36.3kgSurface Color & Surface Treatment :
Silver/Black/Sandblasting
|
Art.No.: JM - 20348 |
|
|
Tooling system |
JM - System Amada |
|
Angle |
85° |
|
Die opening
|
V1 = 16mm, V2 = 25mm
|
|
Radius |
R1 = 2mm, R2 = 3mm |
|
Height |
46 mm |
|
Max load |
800 kN/m max. |
|
Material |
42CrMo, 650 - 800 N/mm² |
|
Length and weight |
835mm/13kg、415mm/6.46kg |
Quality And Precision
▶Optimum materials
▶42CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
835 mm
415 mm
835 mm sectionalized
▶9 Segments
▶Sectionalized dies are delivered as a complete set
▶Lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm (set)
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?

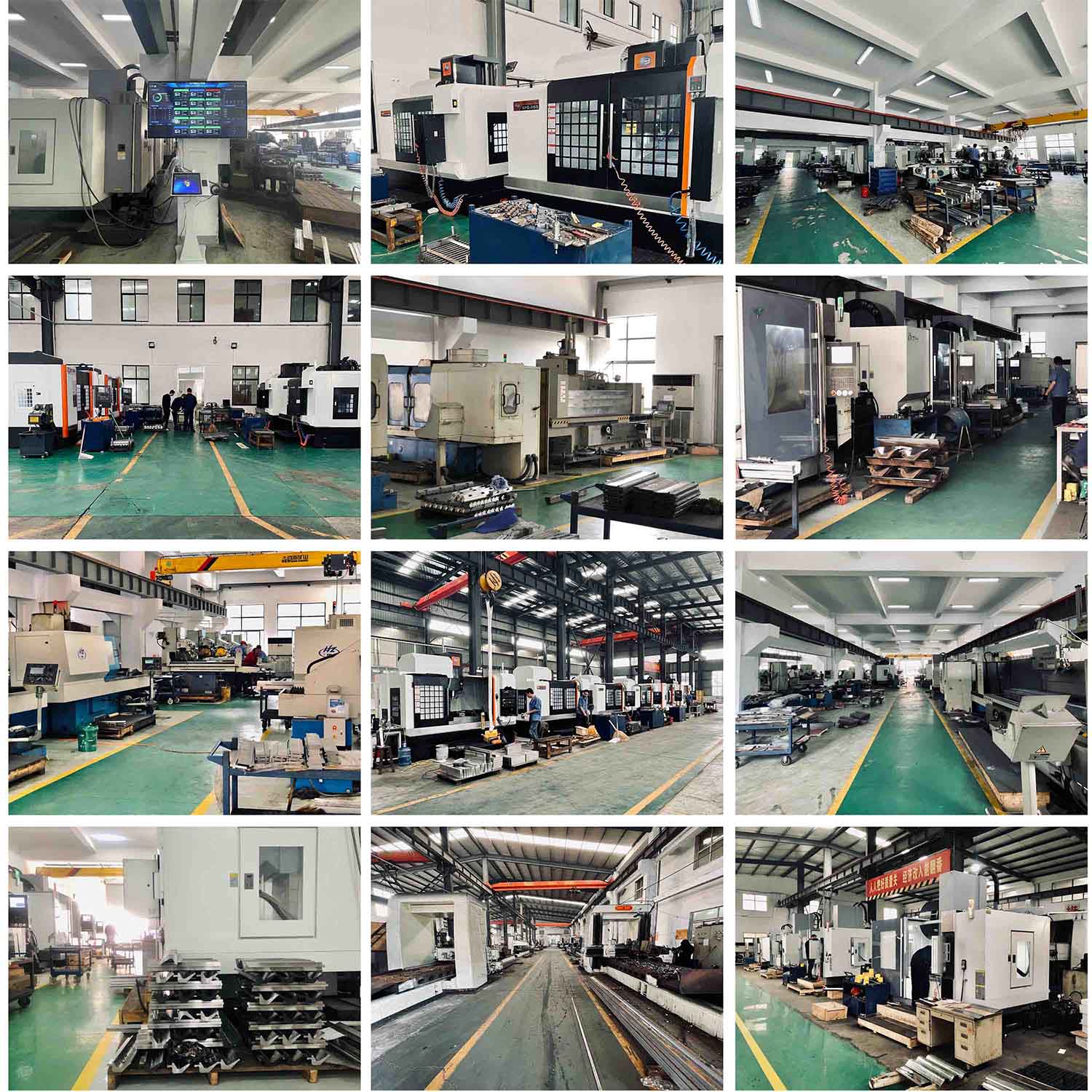

A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
The straight blade size: 175*37*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3，the weight is 34.5kg. We can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Read More
The punch size is 134*26*835mm, 30degree,standard sharp blade. the weight is 13.2kg/pcs and we can make 35degree,45degree or other degree according to your request.
Read More
The straight blade size:130*26*835mm, 85degree. the material is 42CrMo4, hardness is HRC52-58,the weight is 10.5kg. it can be segments with left and right ear according to the customer's requirements.
Read More
The gooseneck punch size: 215*95*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 215mm, width 95mm, the weight is 42kg. Can be made according to customer's request.
Read More
This is standard press brake punch, usually the height is 120 and 125mm. The material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Read More
The gooseneck punch size: 160*56*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 22.4kg. Can be made according to customer's request.
Read More
The gooseneck punch size: 115*45*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 12.8kg. Can be made according to customer's request.
Read More
The punch size: 110*26*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 110mm, the weight is 9kg. Can be made according to customer's request.
