The straight blade size: 175*37*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3，the weight is 34.5kg.
We can make induction harden or all body heat treatment for customers.
For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Tooling system :
JM-System AmadaArt.No. :
JM - 11730Brand :
JaminnarOrder(MOQ) :
1Payment :
T/T, Western Union, Alipay, WeChat etc.Product Origin :
MaanshanShipping Port :
Shanghai / Guangzhou or otherLead Time :
15 - 20 days after receiving the depositAngle :
60°Radius :
5 mmMax load :
1600 kN/mMaterial :
42CrMo4Hardness :
HRC47±3 / HRC57±3Clamping System :
Amada/PromecamHeat Treatment :
Full body heat treatment / Laser hardeningLength and Weight :
835mm/34.5kg、415mm/17kgSurface Color & Surface Treatment :
Silver / Black / Sandblasting
|
JM - 11730 |
|
|
Tooling system |
JM - System Amada |
|
Angle |
60° |
|
Radius |
5 mm、6 mm、10 mm |
|
Effective Height |
145 mm |
|
Load |
1600 kN/m max. |
|
Material |
C45、42CrMo |
|
Length and weight |
835mm/34.5kg、415mm/17kg |
Quality And Precision
▶Optimum materials
▶42CrMo4, tempered to 1100 - 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
835 mm
415 mm
835 mm sectionalized
▶ 9 Segments with horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 10, 15, 20, 40, 50, 200, 300, 100 (right horn) = 835mm (set)
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?

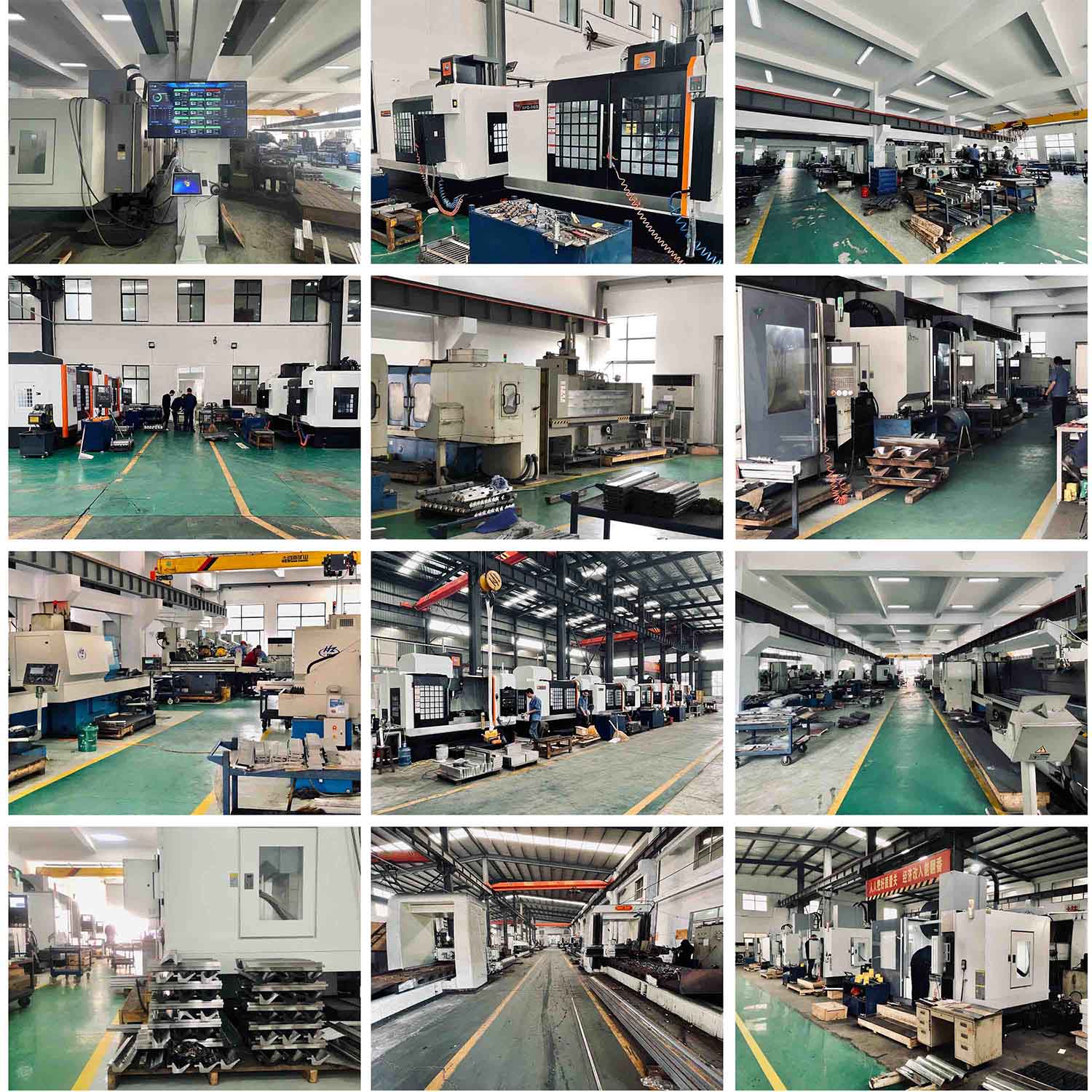

A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
