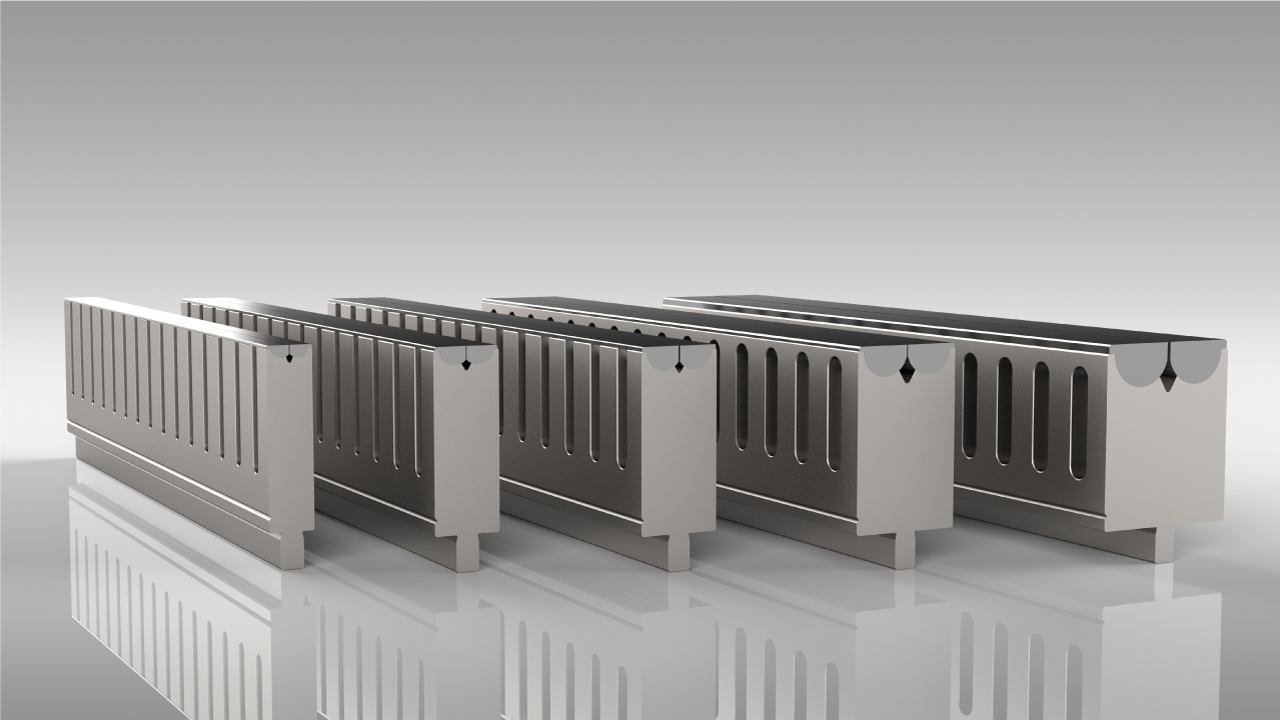

Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Tooling system :
JM-System Rolla-V DieArt.No. :
JM - Rolla-V DieBrand :
JaminnarOrder(MOQ) :
1Payment :
T/T, Western Union, Alipay, WeChat etc.Product Origin :
MaanshanShipping Port :
Shanghai / Guangzhou or otherLead Time :
15 - 20 days after receiving the depositMaterial :
42CrMo4, Cr12MoVHardness :
HRC47±3 / HRC57±3Heat Treatment :
Full body heat treatment / Laser hardeningSurface Color & Surface Treatment :
Silver / Black / Sandblasting
Jaminnar is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Jaminnar can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / promecam european, Trumpf / Wila, Bystronic/Beyeler, LVD type, EHT type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type, Special tools, Shear blades, Crowning Table, Rolla-V, Adjustable Die, Custom Rotary Dies, Clamping system, Tools Storage Cabinets, Protective Traceless Film, etc. Jaminnar has two in-house R&D department specializing in designing technologically advanced solutions and focuses on innovative solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools - our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and uses advanced equipment for production with Implement strict quality control and the guarantee of highly qualified employees. Our molds undergo rigorous testing to ensure stability and durability; Reliability and competitive pricing are two other distinguishing features of our bending tools.
|

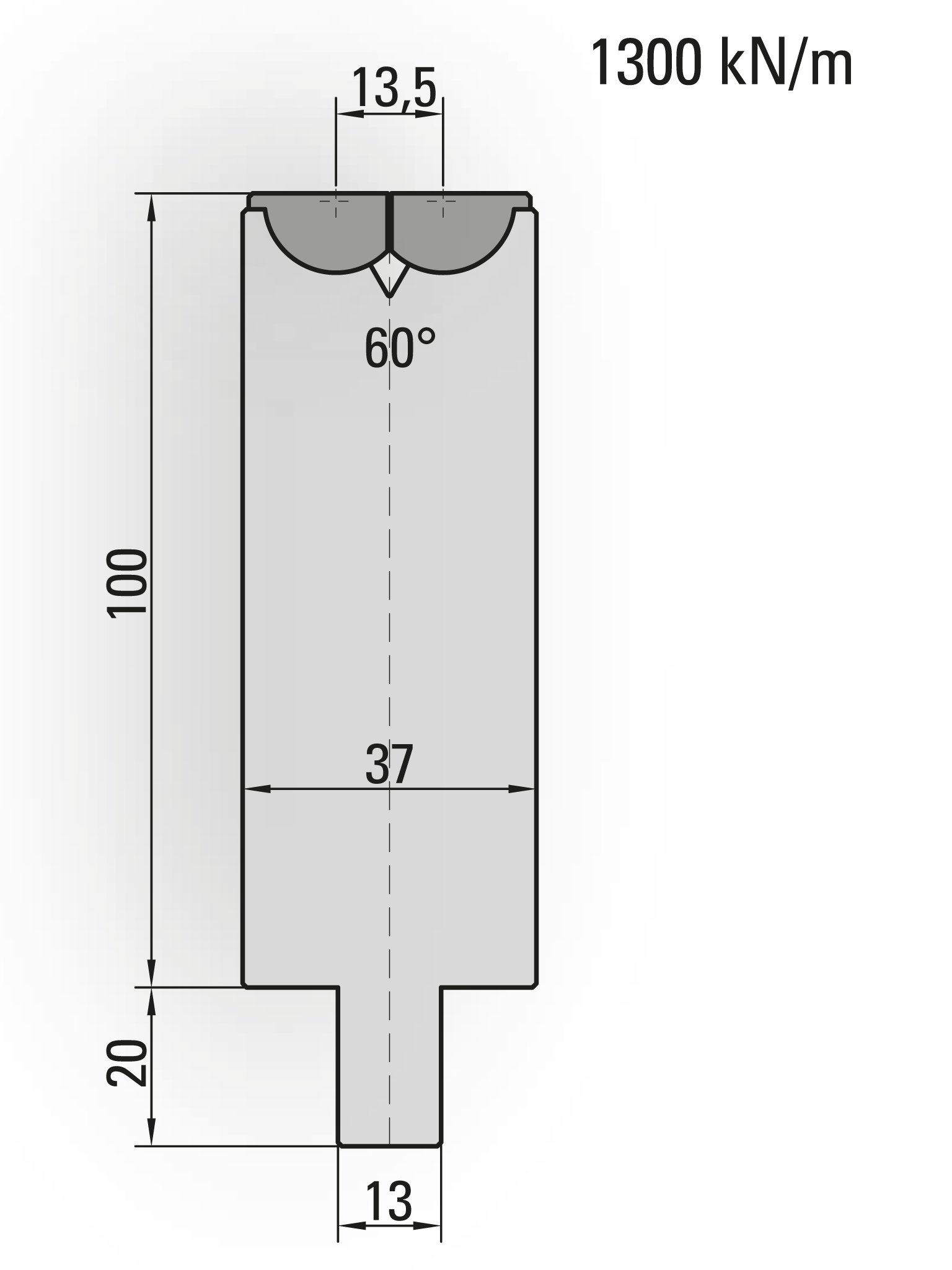

JM - Rolla-V Die |
|
|
Tooling system |
JM - System Rolla-V Die |
|
Effective Height |
90mm, 100 mm |
|
Material |
42CrMo, Cr12MoV |
|
Length |
1000mm/510mm |
Quality And Precision
▶Optimum materials
▶42 CrMo4, Cr12MoV
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
1000 mm
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Read More
Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Read More
Press brake hemming dies with spring for flatten, we can change the v opening according to the customer's bending thickness. Bending step: 1.bending angle first； 2.flatting.
Read More
Press brake wingbend dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Read More
Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles. Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent. Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
Heavy duty press brake tools can bend very thick, high-strength matal plate. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
The tools be designed by the sheet thickness and one set tools just for only one kind of thickness. when you have no idea how to choose, pls improvide the follow informations: Punch press model, punch die station structure, plate thickness, mold specification shape size,mold height series or outer diameter . Thick turret Open louver tools forming punch tools Material:punch-body SKH51 and die DC53 Hardness:HRC58-62 The tools life (round) is about 800000hits and (shape) is about 600000-700000hits. Package:Multi plywood
Read More
The hinge tool is a specialized tool used for producing hinges (hinges), and its core function is to achieve efficient and standardized manufacturing of hinges through precision molding processes.
