Hinge Tools /press brake bending tools

Hinge Tools / Bending Tools

Material: 42CrMo
Hardness: HRC47+/-3
Quench: Full body heat treatment
Package: Multi plywood

Jaminnar is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Jaminnar can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / promecam european, Trumpf / Wila, Bystronic/Beyeler, LVD type, EHT type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type, Special tools, Shear blades, Crowning Table, Rolla-V, Adjustable Die, Custom Rotary Dies, Clamping system, Tools Storage Cabinets, Protective Traceless Film, etc.

Jaminnar has two in-house R&D department specializing in designing technologically advanced solutions and focuses on innovative solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project.  The tools - our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and uses advanced equipment for production with Implement strict quality control and the guarantee of highly qualified employees. Our molds undergo rigorous testing to ensure stability and durability; Reliability and competitive pricing are two other distinguishing features of our bending tools.

Product Details

ADVANTAGES

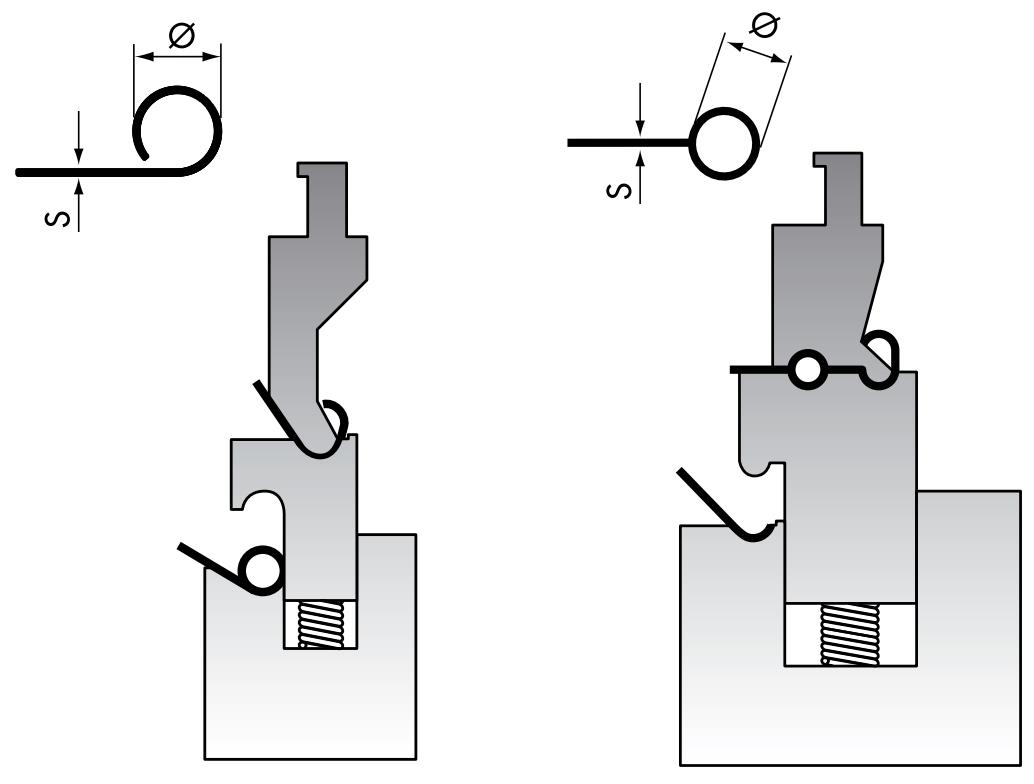

 Production in two or three strokes

 Reducing of marks through spring loaded hold-down-device

 Active components are hardened

 High repeatability through integrated backgauge

 Functional test and adjustment through test bends - with your sample sheets

SUITABLE FOR

 Material thickness up to 4,0 mm

 minimum inside Ø:

    2,5 mm x material thickness for steel and aluminium

    3,0 mm x material thickness for stainless steel

 Other shapes and layouts are manufactured individually according to your specifications

Jaminnar press brake tooling's standard length are:

Two specifications: L835mm and S415mm. Combine and use according to the length of the bending machine worktable and the bent workpiece.

835 mm sectionalized

✔ 9 Segments with horn extension left and right

✔ Sectionalized punches/top-tools are delivered as a complete set

✔ Upper punch: 100 (left horn) 10, 15, 20, 40, 50, 200, 300, 100 (right horn) = 835mm (set)

■ In addition to the above standard length, if you need to customize a special length, please explain.

 Bending Tools Combination Reference Table

The company participates in trade shows, and customers visit the factory

for discussions and purchases.

Our Certificates

Our Factory

Shipping

Quality And Precision

✔ Optimum materials

✔ 42CrMo4, tempered to 1100 - 1200 N/mm²

✔ Bending Radius/Intake Radius Hardens to 54 – 60 HRC

✔ Precision ground

✔ Guaranteed exchangeability and parallelism

✔ Tool marking with all technical information

FAQ

1. Q: Are you a factory or trading company? How is you factory production experience?

    A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.

2. Q: Can you put my brand logo on these products?

    A: Yes, we can.

3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?

    A: MOQ is 1pcs. Purchase amount not less than $50.

4. Q: When can you ship the products after we make payment?

    A: Production time is normally 15-25 days.

5. Q: What materials and processing techniques are used for press brake tooling?

    A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting

6. Q: How long is the warranty period for your products?

    A: Under normal use, the warranty period is 1 year.

7. Q: What payment methods do you support?

    A: T/T, Western Union
