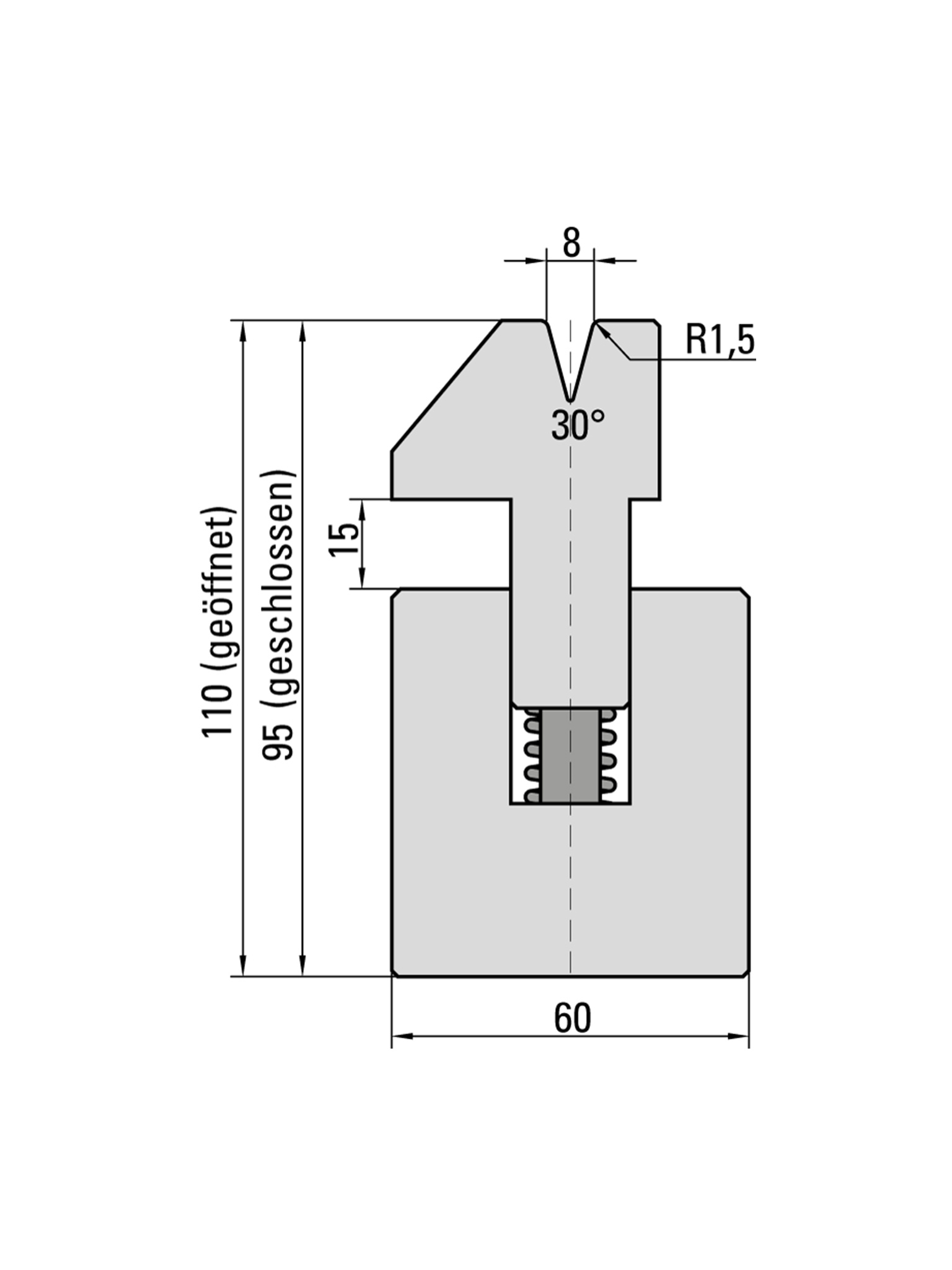

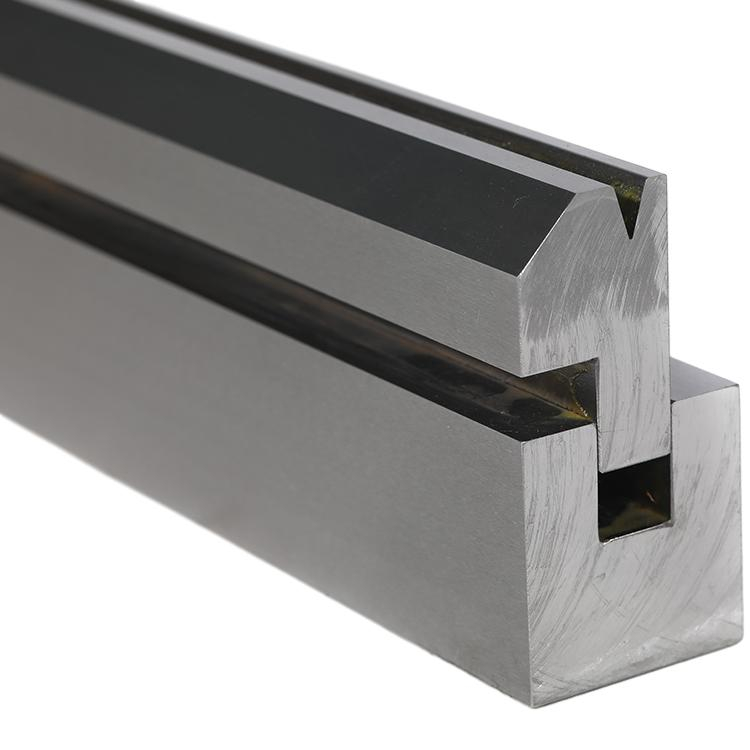

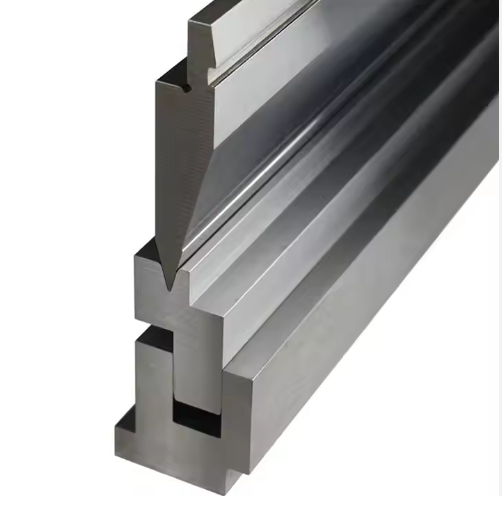

Press brake hemming dies with spring for flatten, we can change the v opening according to the customer's bending thickness.

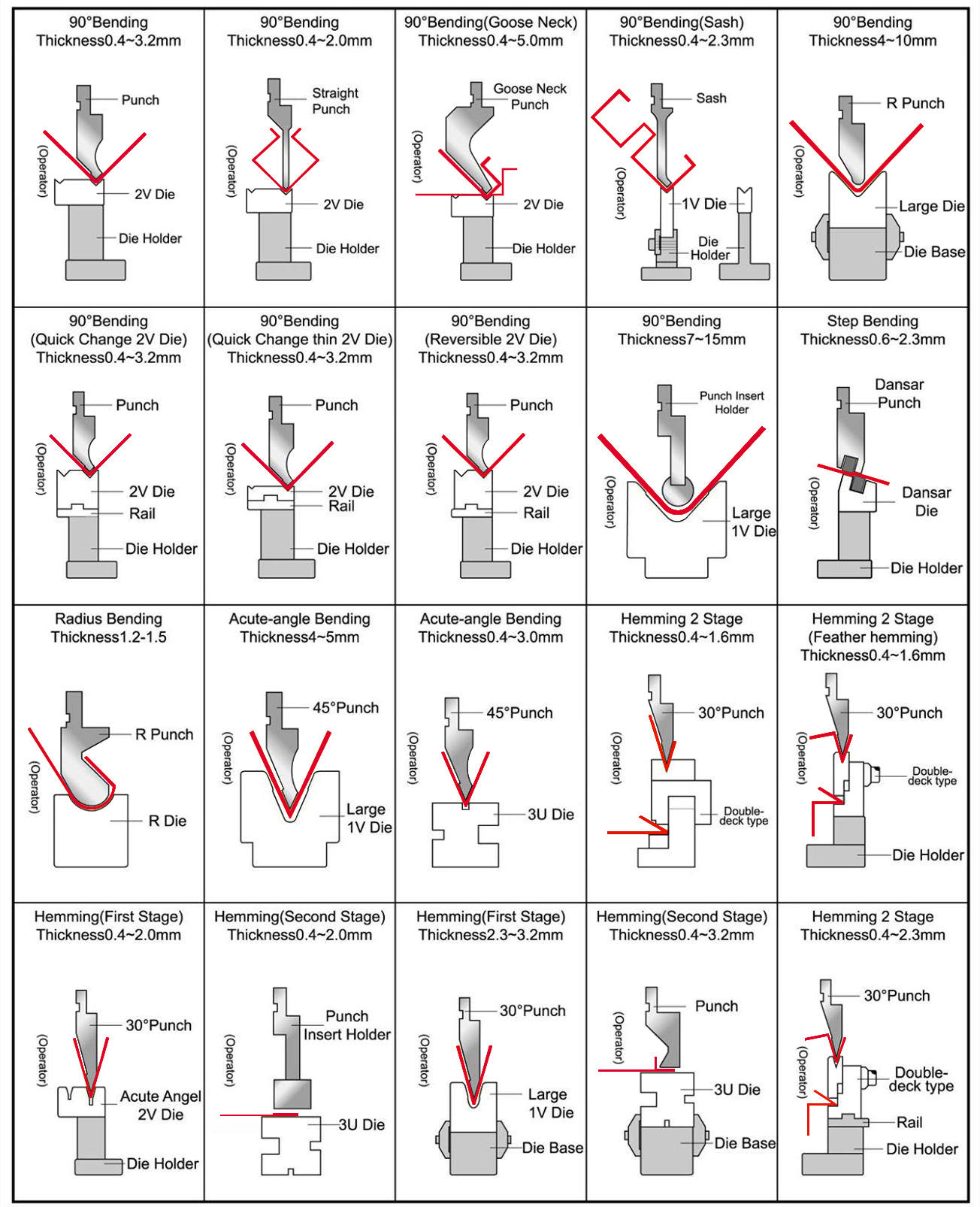

Bending step:
1.bending angle first；
2.flatting.
Product Origin :
MaanshanBrand :
JaminnarOrder(MOQ) :
1Payment :
T/T, Western Union, Alipay, WeChat etc.Shipping Port :
Shanghai / Guangzhou or otherLead Time :
15 - 20 days after receiving the depositHeat Treatment :
Full body heat treatment / Laser hardeningSurface Color & Surface Treatment :
Silver / Black / Sandblasting
|
JM - Hemming Dies h=105mm |
|
|
Tooling system |
JM - System Hemming Tools |
|
Angle |
26°、30°、35° |
|
Radius |
1mm、1.5mm、3mm |
|
Effective Height |
105 mm/135mm |
|
Load |
1000 kN/m max. |
|
Material |
42CrMo, 650 - 800 N/mm² |
|
Length and weight |
835mm/29.9kg、415mm/14.9kg |
Max. 1.0mm / 1.5 mm material thickness
Rm = 400 N/mm²
Quality And Precision
▶Optimum materials
▶42CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
835 mm
415 mm
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
The straight blade size: 175*37*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3，the weight is 34.5kg. We can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Read More
The punch size is 134*26*835mm, 30degree,standard sharp blade. the weight is 13.2kg/pcs and we can make 35degree,45degree or other degree according to your request.
Read More
The straight blade size:130*26*835mm, 85degree. the material is 42CrMo4, hardness is HRC52-58,the weight is 10.5kg. it can be segments with left and right ear according to the customer's requirements.
Read More
The gooseneck punch size: 215*95*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 215mm, width 95mm, the weight is 42kg. Can be made according to customer's request.
Read More
The gooseneck punch size: 215*95*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 215mm, width 95mm, the weight is 42kg. Can be made according to customer's request.
Read More
This is standard press brake punch, usually the height is 120 and 125mm. The material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Read More
The gooseneck punch size: 115*45*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 12.8kg. Can be made according to customer's request.
Read More
The punch size: 110*26*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 110mm, the weight is 9kg. Can be made according to customer's request.
Read More
