Size: H=39/55/75mm (Can be customized according to customers' needs)
Material: 42CrMo / C45
Hardness: HRC44-50
Package: Multi plywood
Tooling system :
JM - System AmadaArt.No. :
JM - GUIDE RAIL + L-DIE SEATBrand :
JaminnarOrder(MOQ) :
1Payment :
T/T, Western Union, Alipay, WeChat etc.Product Origin :
MaanshanShipping Port :
Shanghai / Guangzhou or OtherLead Time :
15 days after receiving the depositTotal Height :
H1=15mm; H2=39/55/75mmMax load :
1000 kN/mMaterial :
42CrMo / C45Length and Weight :
835mm/3.8kg,415mm/1.85kg;835mm/11.4kg,415mm/5.6kg
Jaminnar is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Jaminnar can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / promecam european, Trumpf / Wila, Bystronic/Beyeler, LVD type, EHT type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type, Special tools, Shear blades, Crowning Table, Rolla-V, Adjustable Die, Custom Rotary Dies, Clamping system, Tools Storage Cabinets, Protective Traceless Film, etc. Jaminnar has two in-house R&D department specializing in designing technologically advanced solutions and focuses on innovative solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools - our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and uses advanced equipment for production with Implement strict quality control and the guarantee of highly qualified employees. Our molds undergo rigorous testing to ensure stability and durability; Reliability and competitive pricing are two other distinguishing features of our bending tools.
|

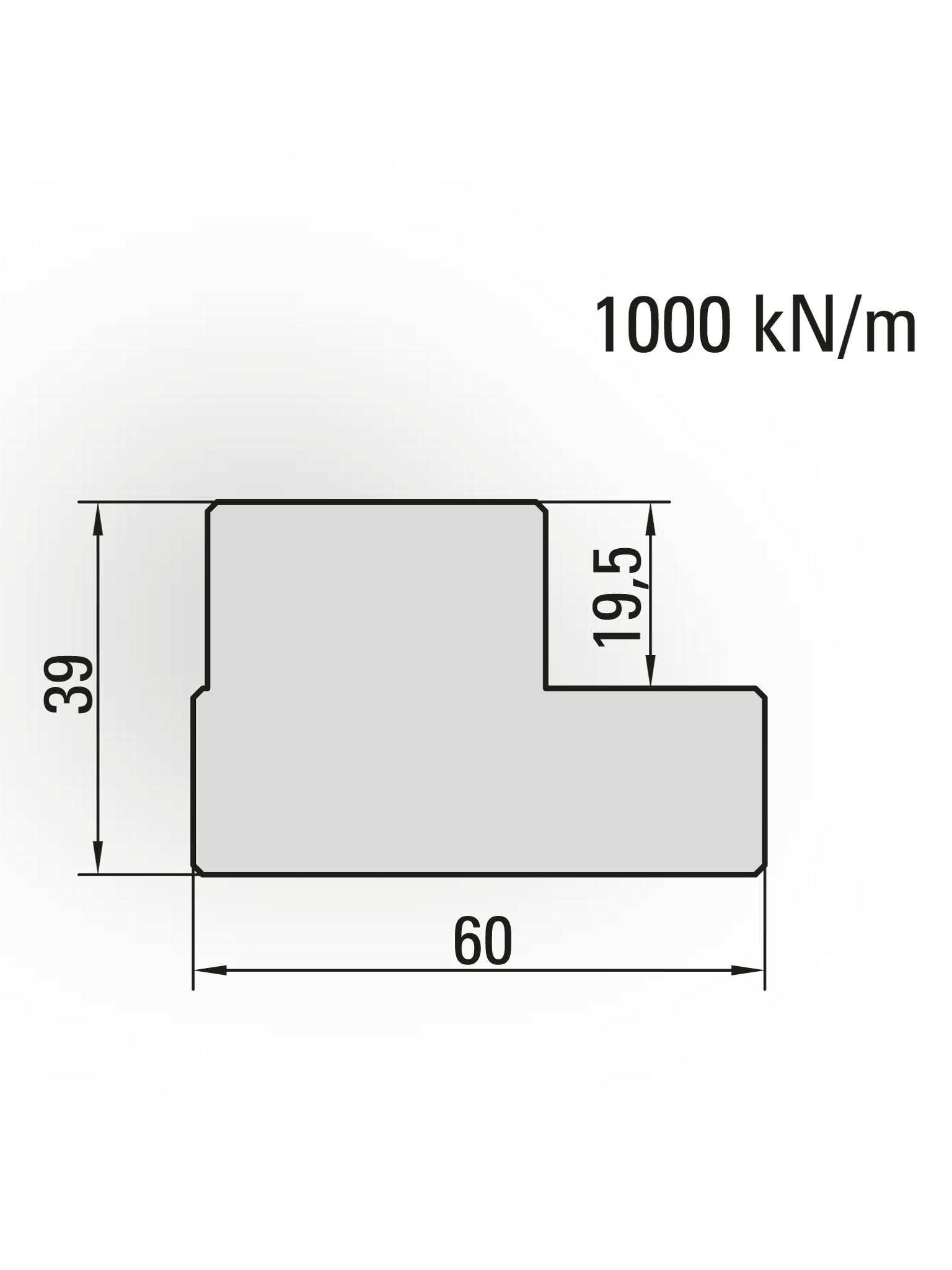

Art.No.: JM - Guide rail + L-Die seat |
|
|
Tooling system |
JM - System Amada |
|
Height |
H1=15mm; H2=39/55/75mm |
|
Max load |
1000 kN/m max. |
|
Material |
42CrMo / C45 |
|
Length and weight |
835mm/3.8kg,415mm/1.85kg; 835mm/11.4kg,415mm/5.6kg |
Quality And Precision
▶Optimum materials
▶42CrMo4 / C45
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
The straight blade size: 175*37*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3，the weight is 34.5kg. We can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Read More
The punch size is 134*26*835mm, 30degree,standard sharp blade. the weight is 13.2kg/pcs and we can make 35degree,45degree or other degree according to your request.
Read More
The straight blade size:130*26*835mm, 85degree. the material is 42CrMo4, hardness is HRC52-58,the weight is 10.5kg. it can be segments with left and right ear according to the customer's requirements.
Read More
The gooseneck punch size: 215*95*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 215mm, width 95mm, the weight is 42kg. Can be made according to customer's request.
Read More
This is standard press brake punch, usually the height is 120 and 125mm. The material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Read More
The gooseneck punch size: 160*56*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 22.4kg. Can be made according to customer's request.
Read More
The gooseneck punch size: 115*45*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 12.8kg. Can be made according to customer's request.
Read More
The punch size: 110*26*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 110mm, the weight is 9kg. Can be made according to customer's request.
Read More
