The straight blade size: 97*26*835mm,85degree. the material is 42CrMo4, hardness is HRC47+/-3, the weight is 11.1kg.
Product Origin :
Maanshan · ChinaTooling system :
JM-System AmadaBrand :
JaminnarPayment :
T/T, Western Union, Alipay, WeChat etc.Shipping Port :
Shanghai / Guangzhou or otherLead Time :
15 - 20 days after receiving the depositSurface Color & Surface Treatment :
Silver / Black / Sandblasting
Size: 96.5*26*835mm(Customizable Size)
Material: 42CrMo / C45
Quench: Full body heat treatment (Can increase the tip of laser quenching tools)
Hardness: HRC47+/-3 (Laser quenching tool tip, tip hardness can reach HRC52-58)
Package: Multi plywood
|
Tooling system |
JM - System Amada |
|
Angle |
85°、88°、90° |
|
Radius |
0.2mm、0.6mm、0.8 mm、1.5mm、3mm |
|
Effective Height |
66.5 mm |
Quality And Precision
✔ Optimum materials
✔ 42CrMo4, tempered to 1100 - 1200 N/mm²
✔ Bending Radius/Intake Radius Hardens to 54 – 60 HRC
✔ Precision ground
✔ Guaranteed exchangeability and parallelism
✔ Tool marking with all technical information
Product Details
Jaminnar Amada punches/top-tooling's standard length are:
Three kinds of L835mm, S415mm and 835 mm standard segmentation.
According to the length of the press brake machine worktable or the bent workpiece, it is used in combination.
835 mm standard segmention size of are:
✔ 9 Segments with horn extension left and right
✔ Sectionalized punches/top-tools are delivered as a complete set
✔ Upper punch: 100 (left horn) 10, 15, 20, 40, 50, 200, 300, 100 (right horn) = 835mm (set)
■ In addition to the above standard length and standard segment size, if you need to customize a special length or special segment length, please explain.
Bending Tools Combination Reference Table
Combination of Punches & Dies

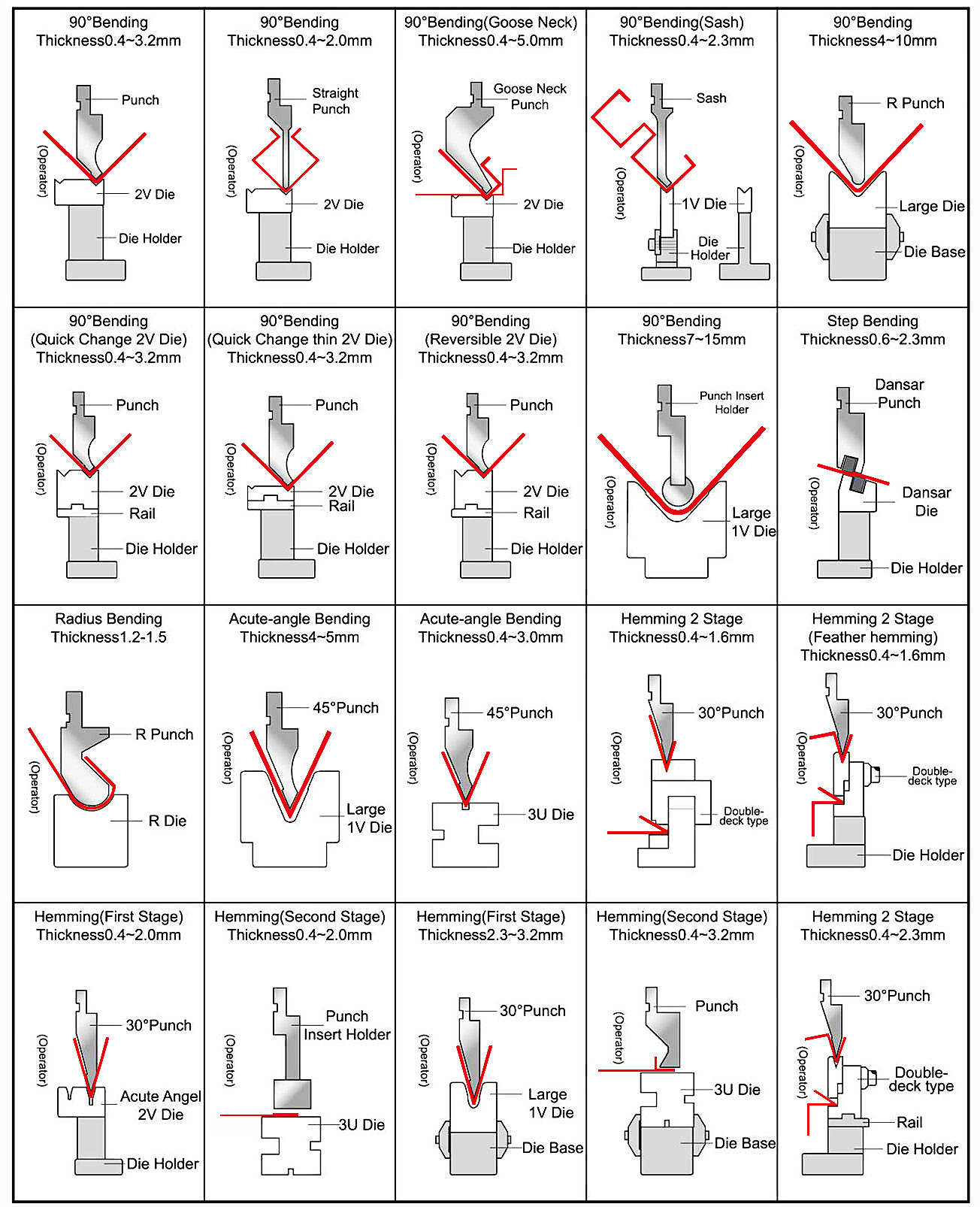

Forming Bending Tools Combination Reference Table
The company participates in trade shows, and customers visit the factory
for discussions and purchases.
Our Certificates

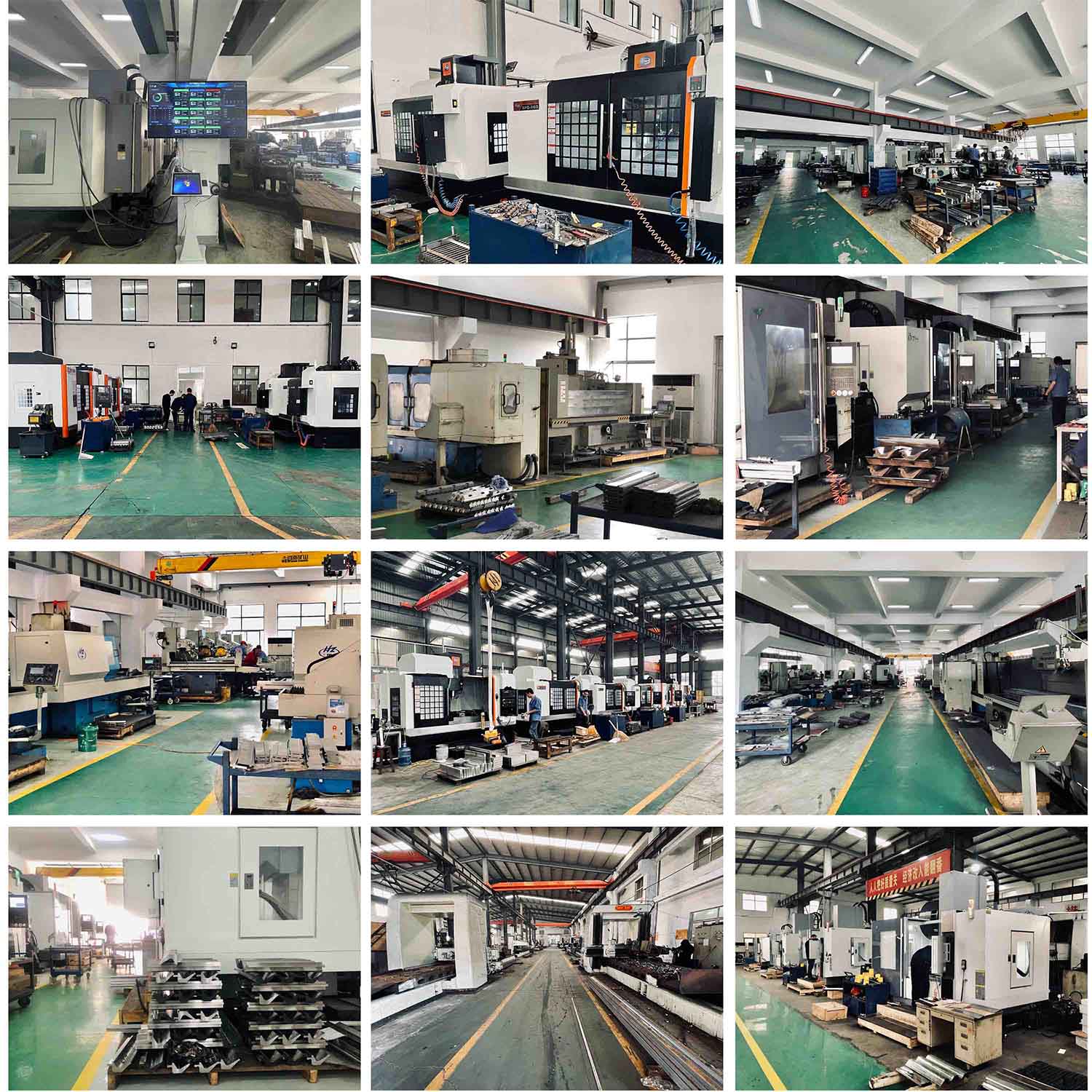

Our Factory
Shipping
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
