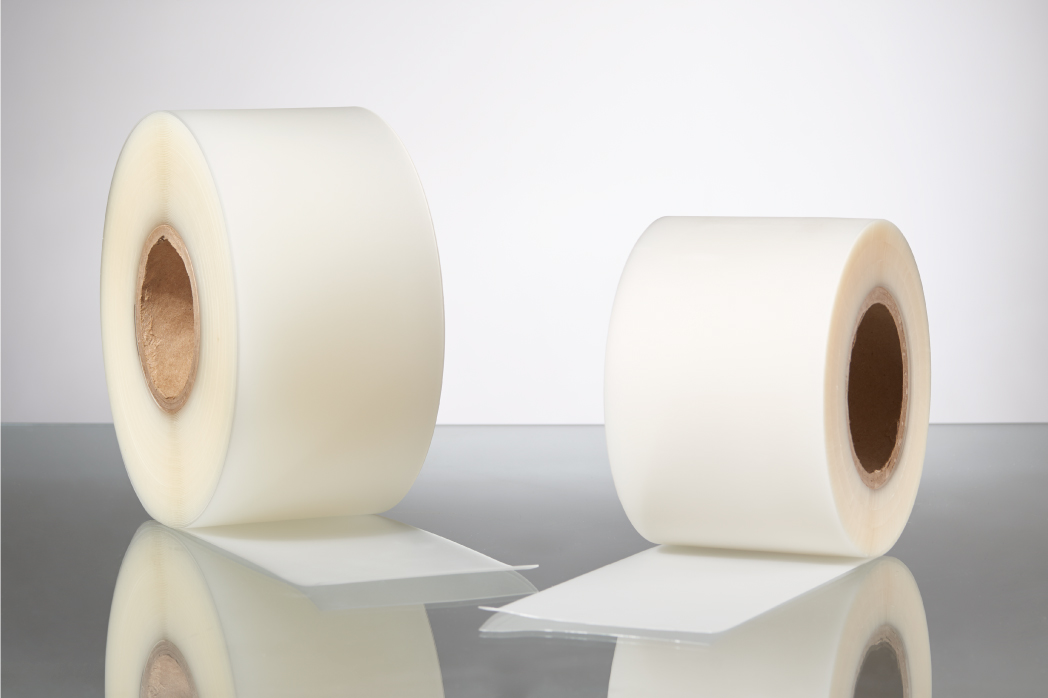

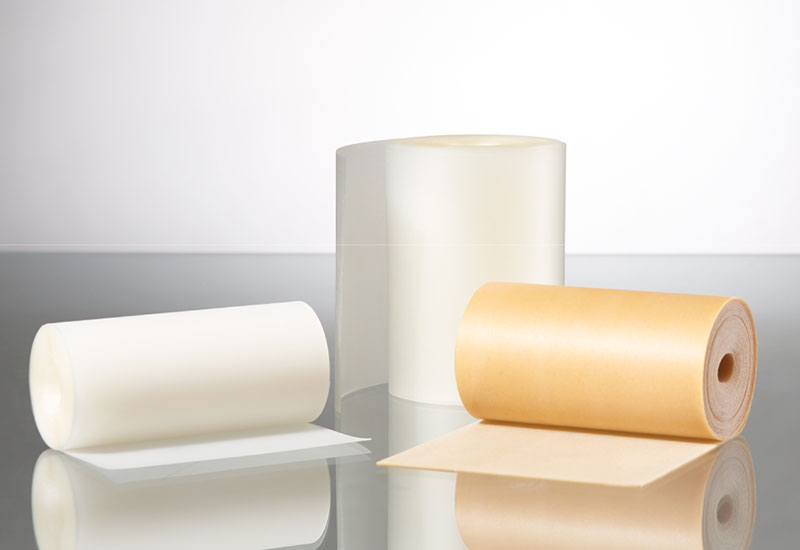

Protective Traceless Film for Bending metal plate (Non marking protective film)

Jaminnar is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Jaminnar can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / promecam european, Trumpf / Wila, Bystronic/Beyeler, LVD type, EHT type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type, Special tools, Shear blades, Crowning Table, Rolla-V, Adjustable Die, Custom Rotary Dies, Clamping system, Tools Storage Cabinets, Protective Traceless Film, etc.  Jaminnar has two in-house R&D department specializing in designing technologically advanced solutions and focuses on innovative solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project.  The tools - our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and uses advanced equipment for production with Implement strict quality control and the guarantee of highly qualified employees. Our molds undergo rigorous testing to ensure stability and durability; Reliability and competitive pricing are two other distinguishing features of our bending tools.

INFORMATION

Core functions and principles:

① Buffer effect: By placing it between the workpiece and the corner of the lower mold, it offsets the mold pressure and avoids indentation caused by direct contact.

② Material characteristics: TPU or polyurethane materials are commonly used, which have both flexibility and wear resistance, and can withstand repeated bending.

③ Applicable scenarios: Especially suitable for precision machining of stainless steel, aluminum alloy, copper plate, as well as high demand fields such as aerospace and electronic appliances.

Instructions and steps for use:

① Cut the appropriate length and size of the film sheet;

② Lay flat on the surface of the lower mold of the bending machine;

③ Secure it to the mold using double-sided tape, magnets, or the provided tensioner kit;

④ Work directly after placing the metal plate;

Optimization tip: Use a slightly larger V-shaped opening lower mold or rounded shoulder mold for better results

Matters needing attention:

① Mold parameters need to be adjusted according to the thickness of the sheet to avoid excessive compression of the protective film;

② Regularly replace the membrane to prevent the accumulation of wear and tear on the protective film, which may affect the protective effect.

Protective Traceless Film LENGTHS

Protective Traceless Film

30 meters = 30000 mm

Choose different thicknesses and widths based on the thickness of the bent metal plate and the width of the lower mold opening.

▶It is recommended to choose a 0.3mm film for 0.1 - 1.0mm metal plates

▶It is recommended to choose a 0.5mm film for 0.5 - 2.0mm metal plates

▶It is recommended to choose a 0.6mm film for 1.5 - 2.5mm metal plates

▶It is recommended to choose a 0.8mm film for 2.0 - 4.0mm metal plates

▶It is recommended to choose a 1.0mm film for 3.0 - 5.0mm metal plates

■ In addition to the above standards, if you need to customize special sizes, please explain.

FAQ

1. Q: Are you a factory or trading company? How is you factory production experience?

    A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.

2. Q: Can you put my brand logo on these products?

    A: Yes, we can.

3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?

    A: MOQ is 1pcs. Purchase amount not less than $50.

4. Q: When can you ship the products after we make payment?

    A: Production time is normally 15-25 days.

5. Q: What materials and processing techniques are used for press brake tooling?

    A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting

6. Q: How long is the warranty period for your products?

    A: Under normal use, the warranty period is 1 year.

7. Q: What payment methods do you support?

    A: T/T, Western Union, WeChat etc.
