The punch size is 256*85*500mm, 86degree, the material is 42CrMo4, the weight is 33.5kg.
Welcome to explore our quality press brake tooling and contact us for professional service!
Tooling system :
JM - System Trumpf/Wila/LVDArt.No. :
JM - 15700Brand :
JaminnarOrder(MOQ) :
1Payment :
T/T, Western Union, Alipay, WeChat etc.Product Origin :
MaanshanShipping Port :
Shanghai / Guangzhou or OtherLead Time :
15 - 20 days after receiving the depositAngle :
86°Radius :
1mmEffective Height :
220mmTotal Height :
256mmMax load :
800 kN/mMaterial :
42CrMo4Hardness :
HRC47±3 / HRC57±3Clamping System :
Trumpf / Wila / LVDHeat Treatment :
Full body heat treatment / Laser hardeningLength and Weight :
550mmSect-Pin/36.9kg、500mm-Pin/33.5kgSurface Color & Surface Treatment :
Silver / Black / Sandblasting
|
ART.NO.: JM - 15700 |
|
|
Tooling system |
JM - System Trumpf/Wila/LVD |
|
Angle |
85°、88°、90° |
|
Radius |
0.2mm、0.6mm、0.8 mm、1.5mm、3mm |
|
Effective Height |
220 mm |
|
Load |
800 kN/m max. |
|
Material |
42CrMo |
|
Length and weight |
550mmSect-Pin/36.9kg、500mm-Pin/33.5kg |
Quality And Precision
▶Optimum materials
▶42 CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information

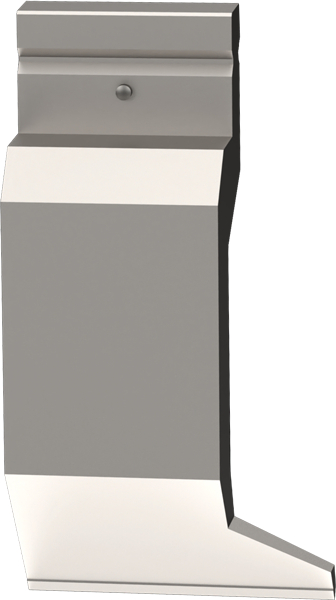

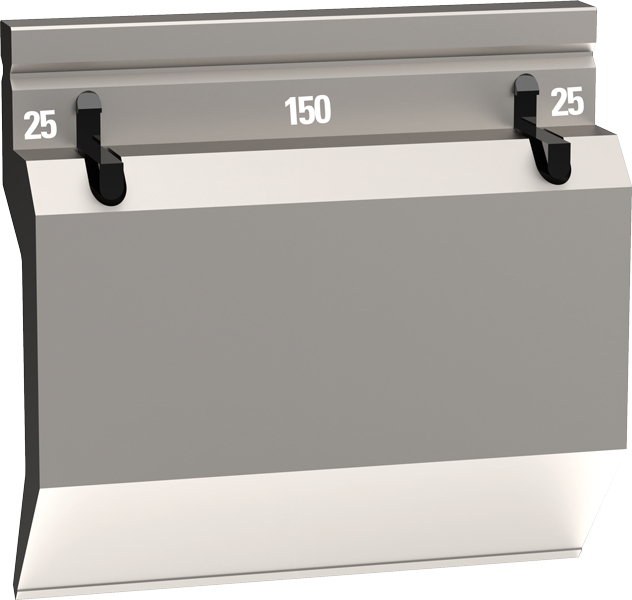

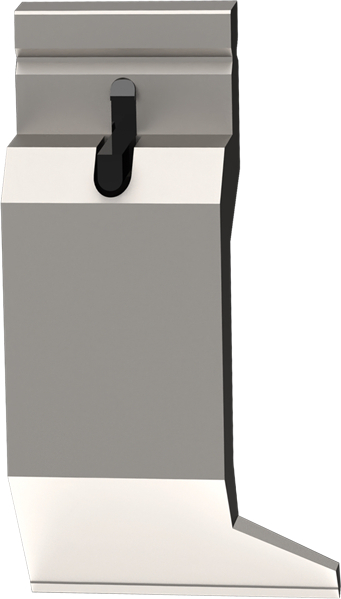

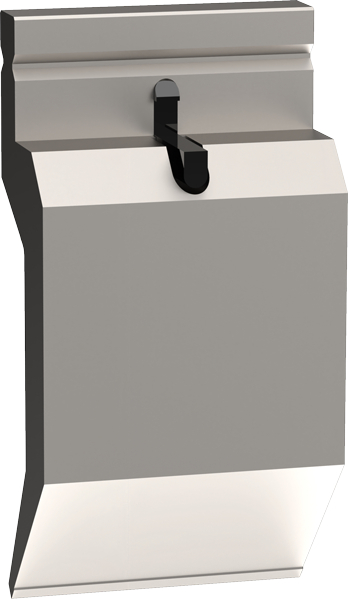

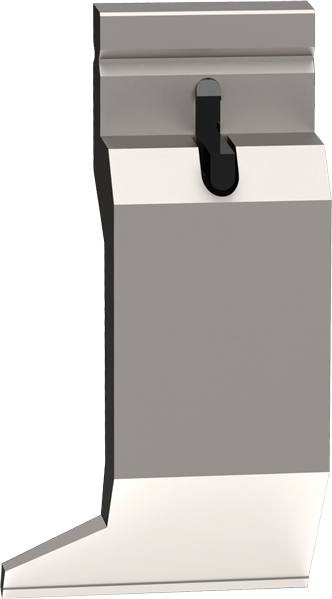

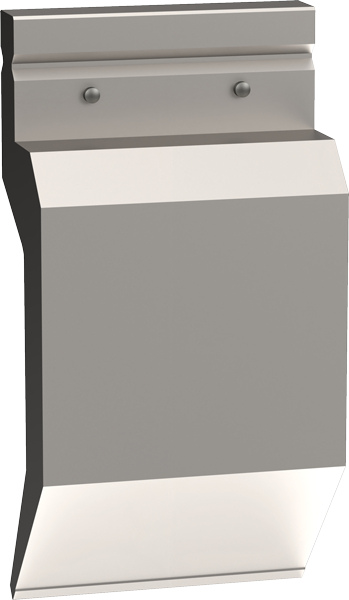

PUNCHES/TOP TOOLS WITH SIMPLE CLAMP < 12,5 kg PUNCHES/TOP TOOLS WITH SAFETY PINS> 12,5 kg
500 mm 500 mm
300 mm 300 mm
200 mm 200 mm
100 mm 100 mm

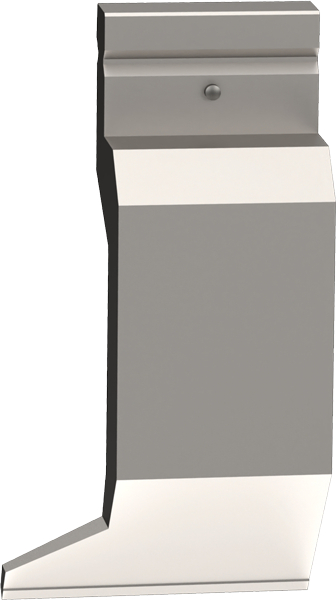

100 mm Horn extension left 100 mm Horn extension left
100 mm Horn extension right 100 mm Horn extension right

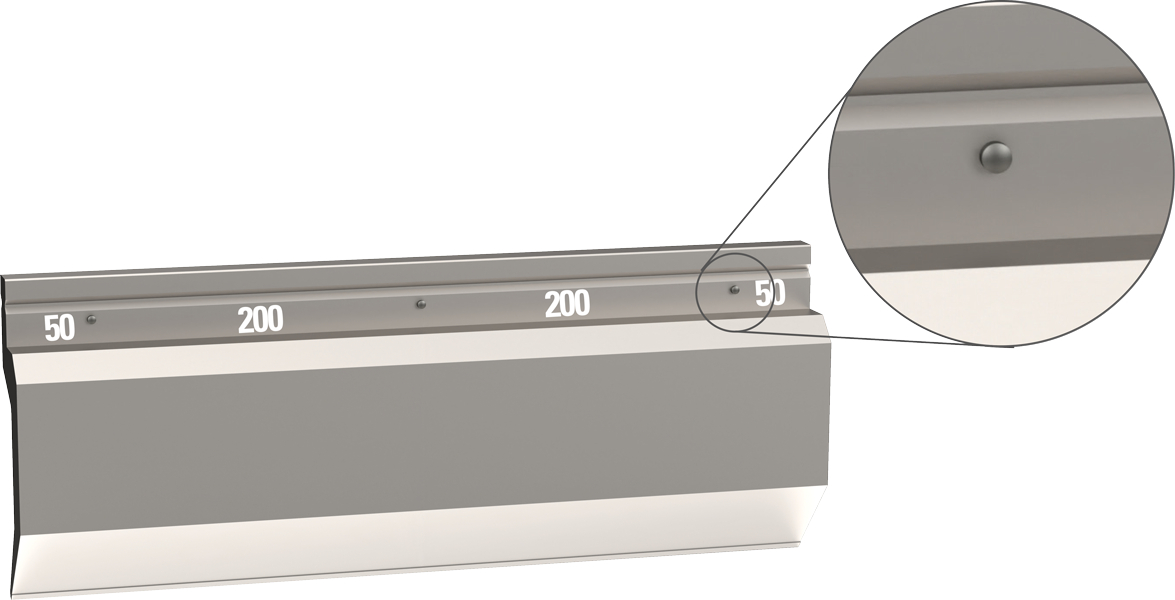

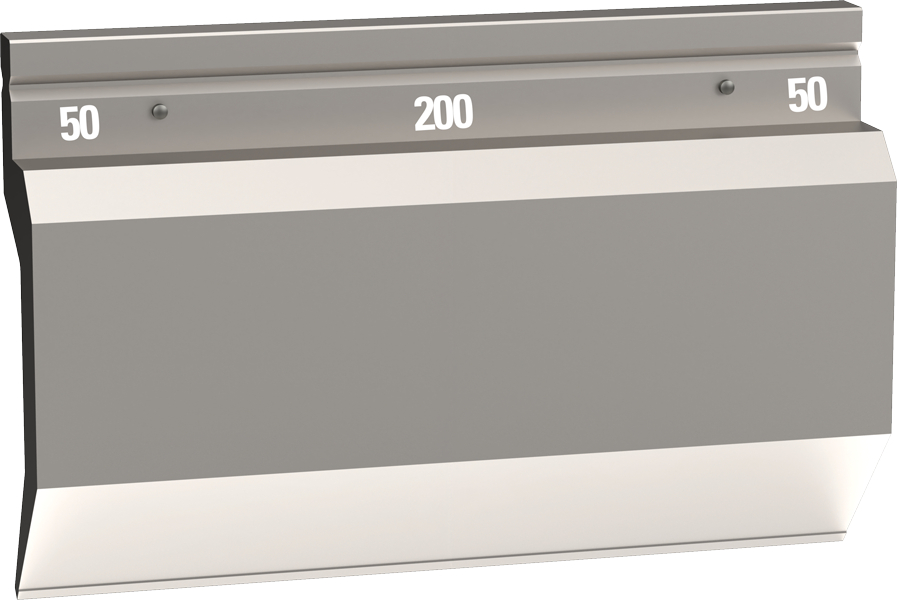

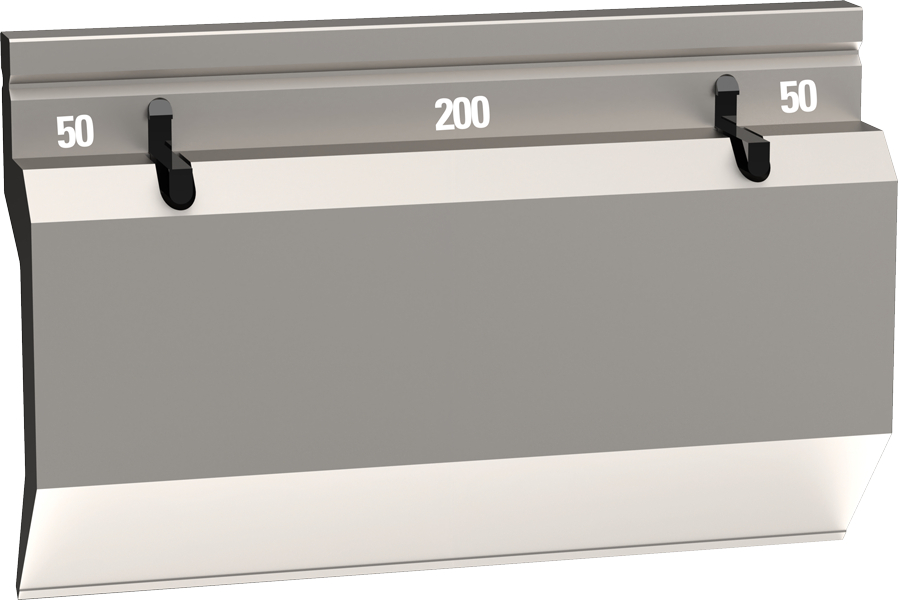

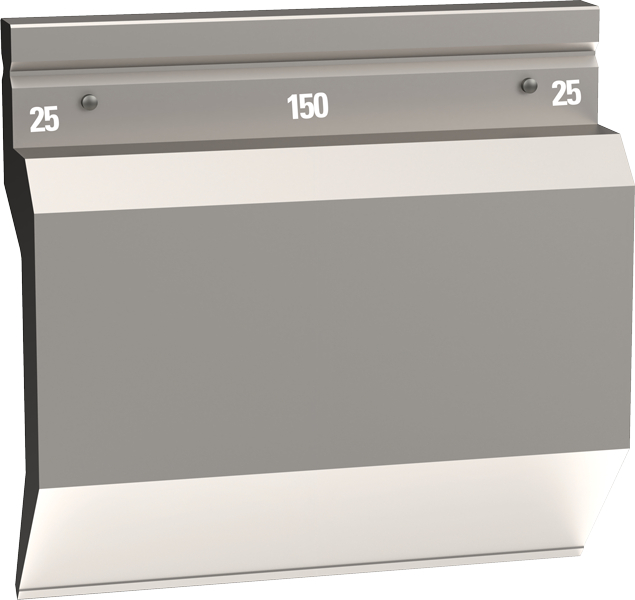

550 mm sectionalized
▶ 10 Segments with horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 100 (right horn) = 550mm (set)
2050 mm Tool Set
▶ 14 Segments, with Simple Clamp and horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×2,100 (right horn) = 2050mm (set)
3050 mm Tool Set
▶16 Segments, with Simple Clamp and horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×4,100 (right horn) = 3050mm (set)
4050 mm Tool Set
▶ 18 Segments, with Simple Clamp and horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×6,100 (right horn) = 4050mm (set)
■ Create your own individual tool lengths set for punches/top tools and dies!
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
The punch size is 135*26*835mm, 85degree, the material is 42CrMo4, the weight is 17.7kg. and we can make the height is 65mm,90mm and 120mm. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
The punch size is 165*26*835mm, 85degree, the material is 42CrMo4, the weight is 22.8kg. and we can make the height is 65mm,90mm and 120mm. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
The stright blade size: 97*26*835mm,85degree. the material is 42CrMo4, hardness is HRC47+/-3, the weight is 11.1kg Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles. Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent. Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
Rotary DiesRotary dies are a great special tooling solution with numerous bending operation benefits. Because tonnage disperses with the movement of the rotating cam, the application requires less tonnage and makes bending sheet significantly easier for operators to handle. In some cases, using a rotary tool can cut labour costs in half, when more than one operator has traditionally been required, and improves safety. For cosmetic applications, rotary bending greatly decreases tonnage and part marking so sheets may require less protection and have improved finished appearance.Rotary die features:Improved safety for larger parts due to controlled material whipMaterial marking is reduced since tonnage is reduced on the shoulder of the die and abrasion is lessenedReduced tonnage on an application by 50% or morePotential reduction in labor needs
Read More
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
Read More
Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles. Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent. Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
Heavy duty press brake tools can bend very thick, high-strength matal plate. Welcome to explore our quality press brake tooling and contact us for professional service!
Read More
