JM - System LVD - 78°/V6/R0.8 Dies H = 90mm

The punch size is 135*26*835mm, 85degree, the material is 42CrMo4, the weight is 17.7kg. and we can make the height is 65mm,90mm and 120mm.   Welcome to explore our quality press brake tooling and contact us for professional service!

The punch size is 165*26*835mm, 85degree, the material is 42CrMo4, the weight is 22.8kg. and we can make the height is 65mm,90mm and 120mm.   Welcome to explore our quality press brake tooling and contact us for professional service!

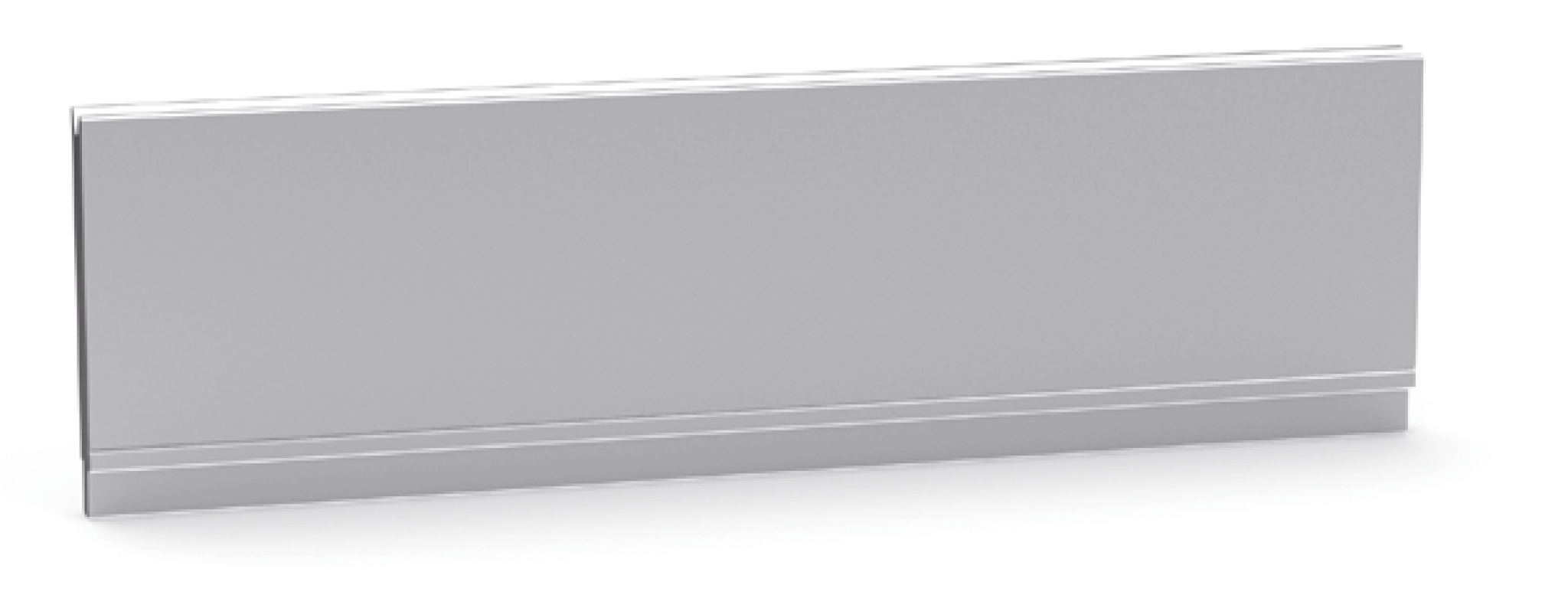

The stright blade size: 97*26*835mm,85degree. the material is 42CrMo4, hardness is HRC47+/-3, the weight is 11.1kg   Welcome to explore our quality press brake tooling and contact us for professional service!

Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles.   Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent.   Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs.   Welcome to explore our quality press brake tooling and contact us for professional service!

Rotary DiesRotary dies are a great special tooling solution with numerous bending operation benefits. Because tonnage disperses with the movement of the rotating cam, the application requires less tonnage and makes bending sheet significantly easier for operators to handle. In some cases, using a rotary tool can cut labour costs in half, when more than one operator has traditionally been required, and improves safety. For cosmetic applications, rotary bending greatly decreases tonnage and part marking so sheets may require less protection and have improved finished appearance.Rotary die features:Improved safety for larger parts due to controlled material whipMaterial marking is reduced since tonnage is reduced on the shoulder of the die and  abrasion is lessenedReduced tonnage on an application by 50% or morePotential reduction in labor needs

Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.

Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles.   Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent.   Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs.   Welcome to explore our quality press brake tooling and contact us for professional service!

Heavy duty press brake tools can bend very thick, high-strength matal plate.   Welcome to explore our quality press brake tooling and contact us for professional service!
