Drive with Motor for Crowning Table

Jaminnar is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Jaminnar can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / promecam european, Trumpf / Wila, Bystronic/Beyeler, LVD type, EHT type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type, Special tools, Shear blades, Crowning Table, Rolla-V, Adjustable Die, Custom Rotary Dies, Clamping system, Tools Storage Cabinets, Protective Traceless Film, etc.  Jaminnar has two in-house R&D department specializing in designing technologically advanced solutions and focuses on innovative solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project.  The tools - our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and uses advanced equipment for production with Implement strict quality control and the guarantee of highly qualified employees. Our molds undergo rigorous testing to ensure stability and durability; Reliability and competitive pricing are two other distinguishing features of our bending tools.

INFORMATION

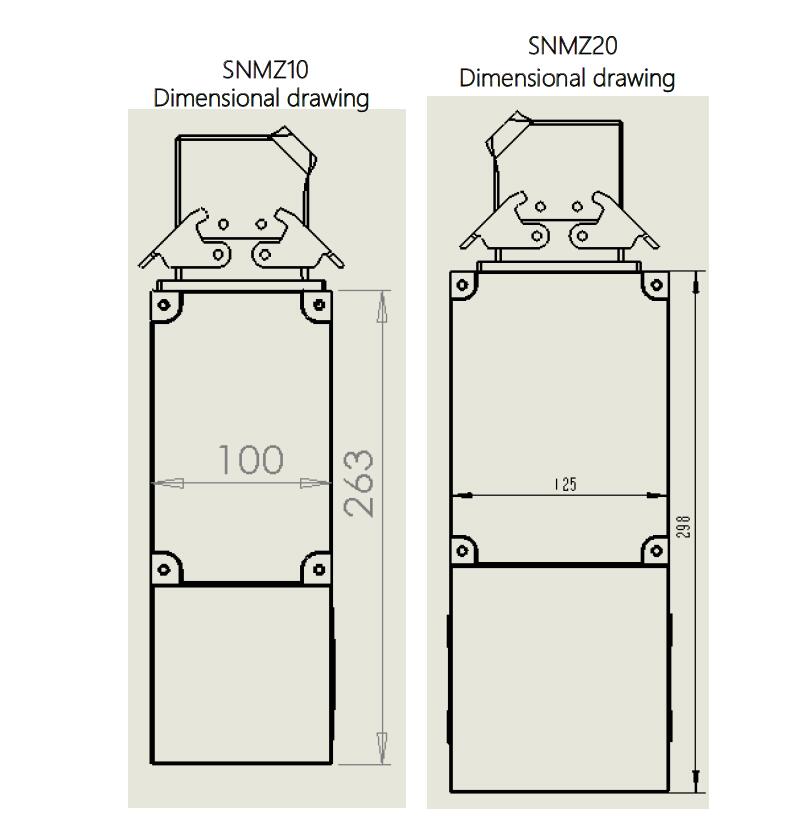

Crowning Table Motor SNMZ Series

Technical Specifications

▶1 INSTALLATION

• 1-1. The worm reducer can be installed in multiple directions.

• 1-2. When installing couplings and other connecting parts on the output shaft of the

worm reducer, it is strictly forbidden to hit hard with a hand hammer, and ensure that the keyway There is a proper gap between the bottom and the flat key part.

• 1-3. When the products of our factory leave the factory, the left and right joint

surfaces are sealed and leak-proof by adhesive, and the user can disassemble and assemble by himself.Finally, ensure that the sealing performance is intact to avoid oil leakage.

▶2 USE

• 2-1. The worm reducer has been filled with lubricating oil before leaving the factory, so it can be used without adding oil.

• 2-2. The working environment temperature of the worm reducer is -20°C to 50°C, and the maximum surface temperature of the motor body should be ≤95℃.

• 2-3. This product can run forward and reverse, and can also be started under load.

▶3 MAINTENANCE

• 3-1. The surface of this product should be kept clean to facilitate heat dissipation. This product is a fully enclosed structure and does not need to be replaced for lubrication Oil.

• 3-2. When the rubber seal is damaged due to aging and wear, or oil leaks, it should be replaced in time. It is strictly forbidden to transport without oil or without oil. change.

• 3-3. If abnormal phenomena are found in the machine during use, stop the machine for inspection in time, and avoid knocking during maintenance and disassembly.

Hit it so as not to damage it.4Quality Assurance

• 3-4. Anyone who installs and uses according to the provisions of this “SHMZ Instruction Manual”, and the joint surface has not been disassembled, is indeed the owner of the

factory.Faults or failures caused by poor manufacturing quality will be repaired free of charge within two years from the date of delivery or Replace with a new machine.

Failure or damage caused by improper use is not covered by the warranty.

FAQ

1. Q: Are you a factory or trading company? How is you factory production experience?

    A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.

2. Q: Can you put my brand logo on these products?

    A: Yes, we can.

3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?

    A: MOQ is 1pcs. Purchase amount not less than $50.

4. Q: When can you ship the products after we make payment?

    A: Production time is normally 15-25 days.

5. Q: What materials and processing techniques are used for press brake tooling?

    A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting

6. Q: How long is the warranty period for your products?

    A: Under normal use, the warranty period is 1 year.

7. Q: What payment methods do you support?

    A: T/T, Western Union, WeChat etc.
