JM - System Trumpf - Punches/top-tools R1/86° H = 220mm

INFORMATION

Quality And Precision

▶Optimum materials

▶42 CrMo4, tempered to 1100- 1200 N/mm²

▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC

▶Precision ground

▶Guaranteed exchangeability and parallelism

▶Tool marking with all technical information

TOOL LENGTHS

PUNCHES/TOP-TOOLS

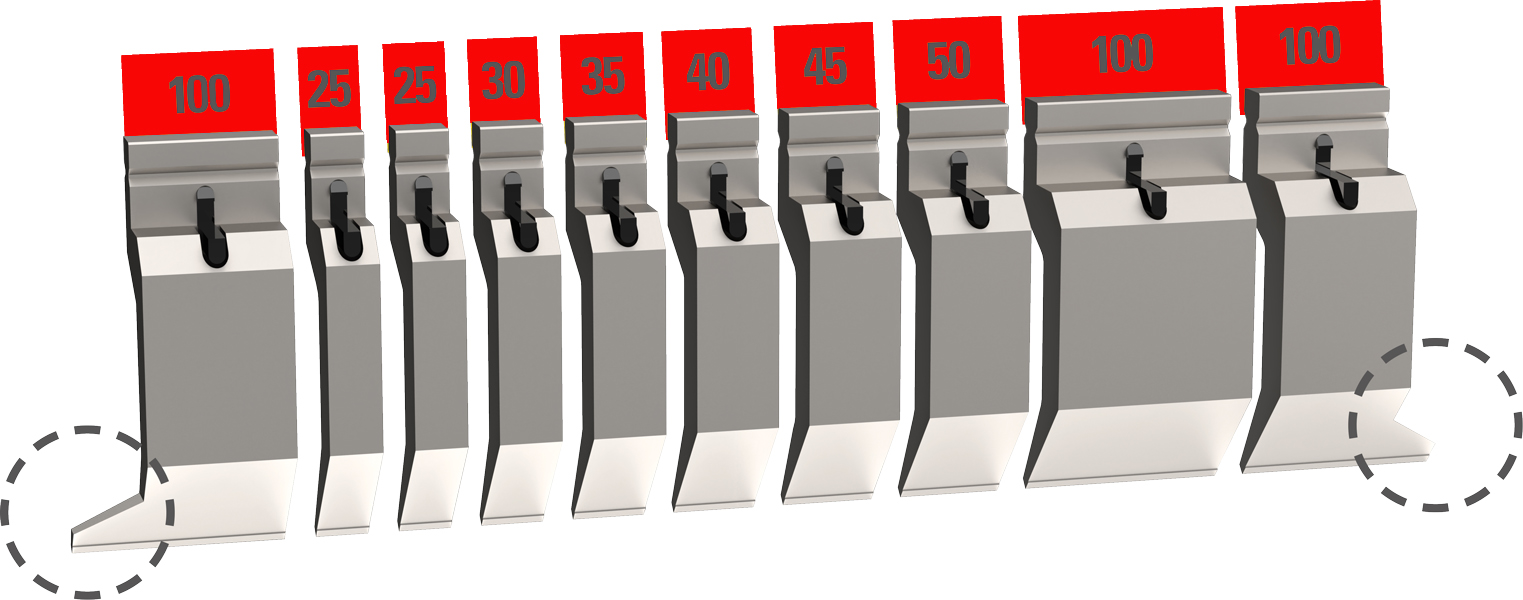

550 mm sectionalized

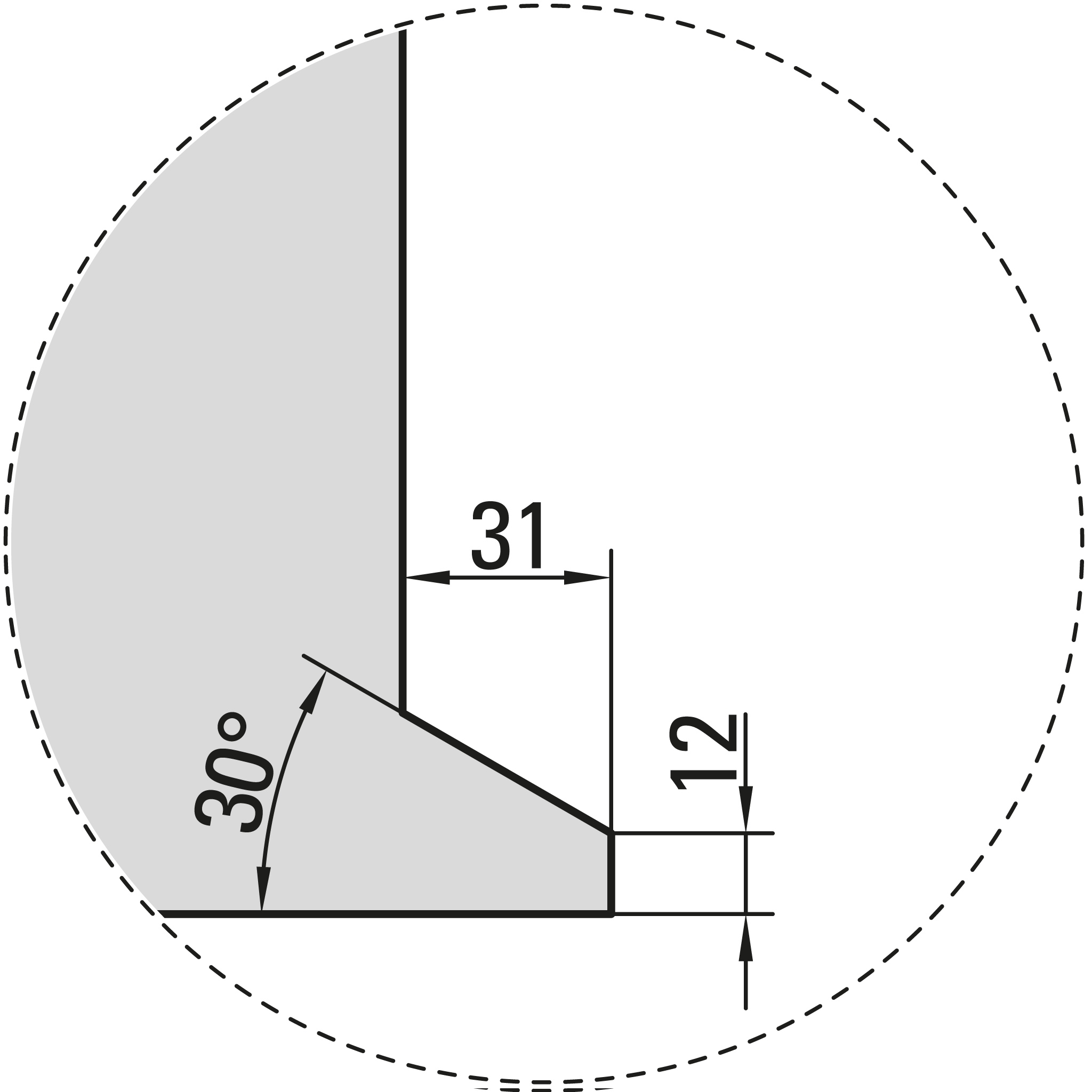

▶ 10 Segments with horn extension left and right

▶ Sectionalized punches/top-tools are delivered as a complete set

▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 100 (right horn) = 550mm (set)

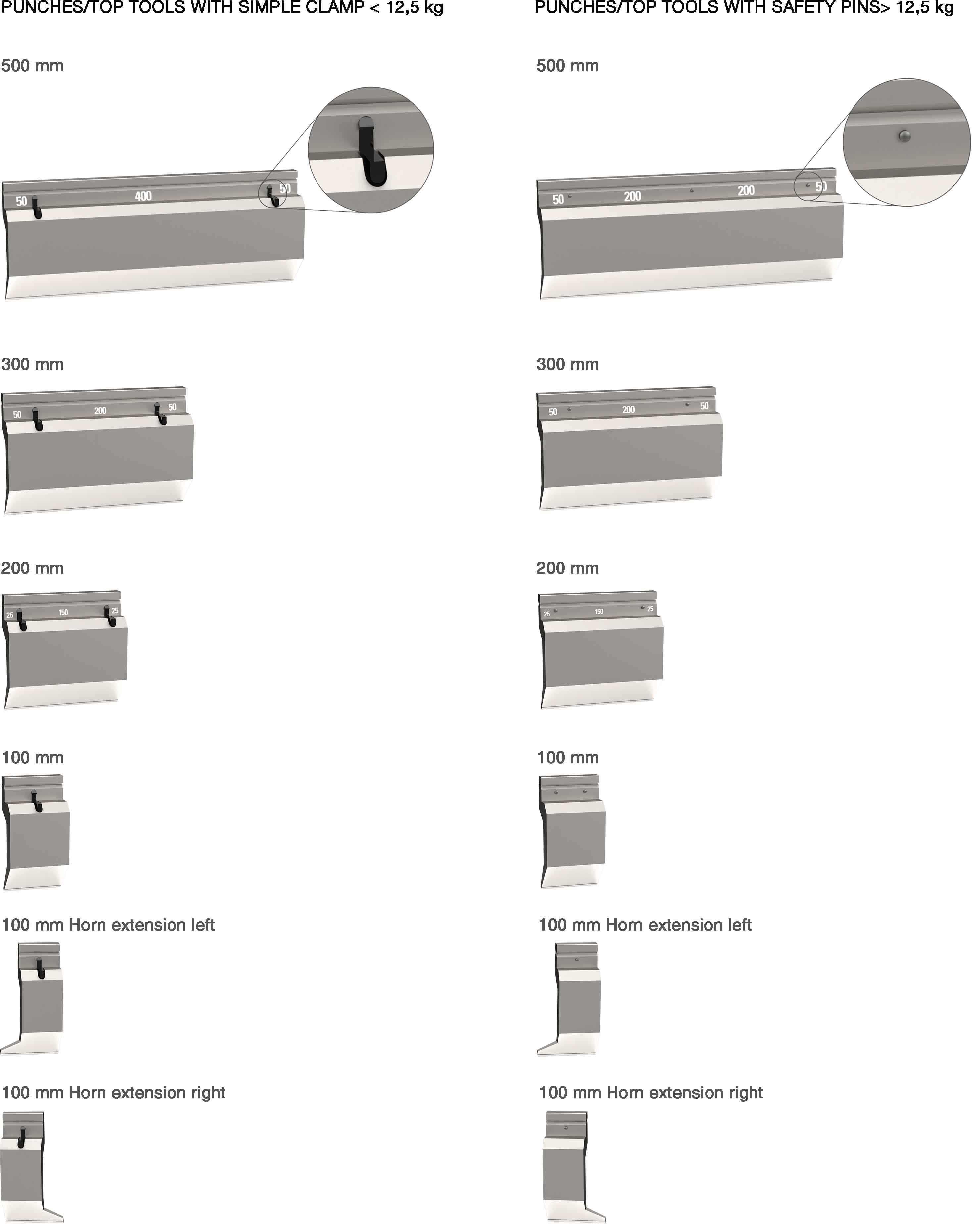

2050 mm Tool Set

▶ 14 Segments, with Simple Clamp and horn extension left and right

▶ Sectionalized punches/top-tools are delivered as a complete set

▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×2,100 (right horn) = 2050mm (set)

3050 mm Tool Set

▶16 Segments, with Simple Clamp and horn extension left and right

▶ Sectionalized punches/top-tools are delivered as a complete set

▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×4,100 (right horn) = 3050mm (set)

4050 mm Tool Set

▶ 18 Segments, with Simple Clamp and horn extension left and right

▶ Sectionalized punches/top-tools are delivered as a complete set

▶ Upper punch: 100 (left horn) 25, 25, 30, 35, 40, 45, 50, 100, 200,300,500×6,100 (right horn) = 4050mm (set)

■    Create your own individual tool lengths set for punches/top tools and dies!

■ In addition to the above standard length, if you need to customize a special length, please explain.

FAQ

1. Q: Are you a factory or trading company? How is you factory production experience?

    A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.

2. Q: Can you put my brand logo on these products?

    A: Yes, we can.

3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?

    A: MOQ is 1pcs. Purchase amount not less than $50.

4. Q: When can you ship the products after we make payment?

    A: Production time is normally 15-25 days.

5. Q: What materials and processing techniques are used for press brake tooling?

    A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting

6. Q: How long is the warranty period for your products?

    A: Under normal use, the warranty period is 1 year.

7. Q: What payment methods do you support?

    A: T/T, Western Union, WeChat etc.
